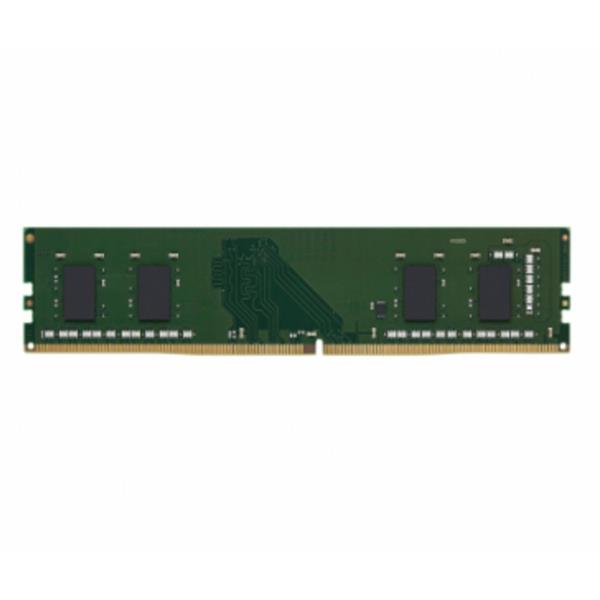

DIMM 8 GB DDR4 KINGSTON 3200 CL221.2V

Descripción

FEATURES• Power Supply: VDD = 1.2V Typical• VDDQ = 1.2V Typical• VPP = 2.5V Typical• VDDSPD = 2.2V to 3.6V• Nominal and dynamic on-die termination (ODT) for data strobe and mask signals• Low-power auto self refresh (LPASR)• Data bus inversion (DBI) for data bus• On-die VREFDQ generation and calibration• Single-rank• On-board I2 serial presence-detect (SPD) EEPROM• 8 internal banks; 2 groups of 4 banks each• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)• Selectable BC4 or BL8 on-the-fly (OTF)• Fly-by topology• Terminated control command and address bus• PCB: Height 1.23 (31.25mm)• RoHS Compliant and Halogen-Free
